| Place of Origin: | China |
| Brand Name: | ORIENTRONIC |

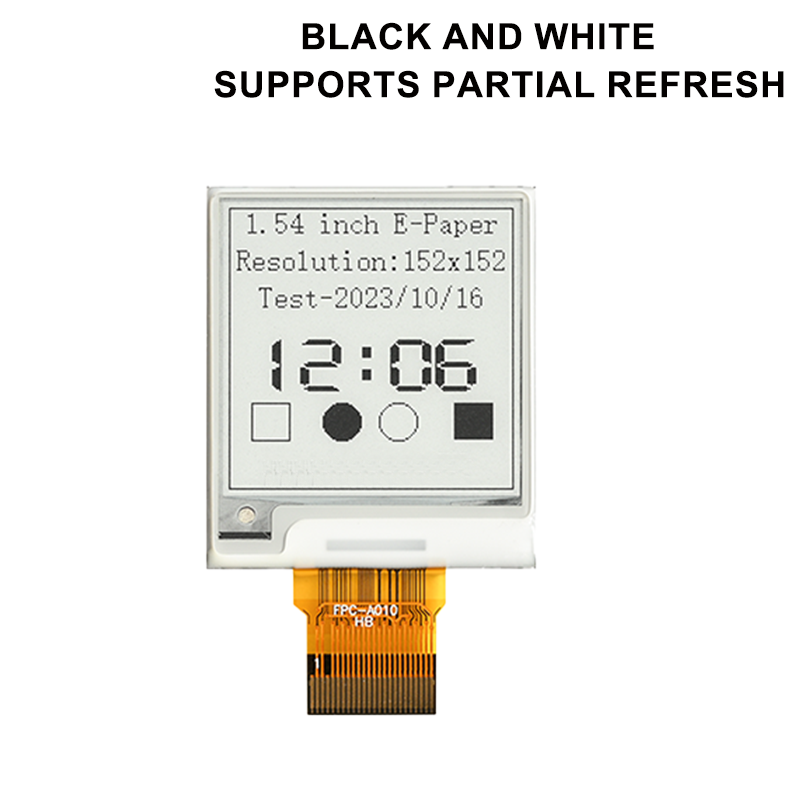

Features of E-ink Displays: Widely used in shelf labels, smart labels, smart home devices, and other fields.
Product Highlights:
1. Content is retained even when power is off;
2. Hard-coated, anti-glare display surface;
3. High contrast and high reflectivity;
4. Ultra-low current deep sleep mode;
5. Ultra-wide viewing angle and ultra-low power consumption;
6. Pure reflective mode;
| Pin | Symbol | Pin | Symbol |
| 1 | NC | 13 | SCL |
| 2 | GDR | 14 | SDA |
| 3 | RESE | 15 | VDDIO |
| 4 | NC | 16 | VCI |
| 5 | VSH2 | 17 | VSS |
| 6 | TSCL | 18 | VDD |
| 7 | TSDA | 19 | VPP |
| 8 | BS1 | 20 | VSH1 |
| 9 | BUSY | 21 | VGH |
| 10 | RES# | 22 | VSL |
| 11 | D/C# | 23 | VGL |
| 12 | CS# | 24 | VCOM |
