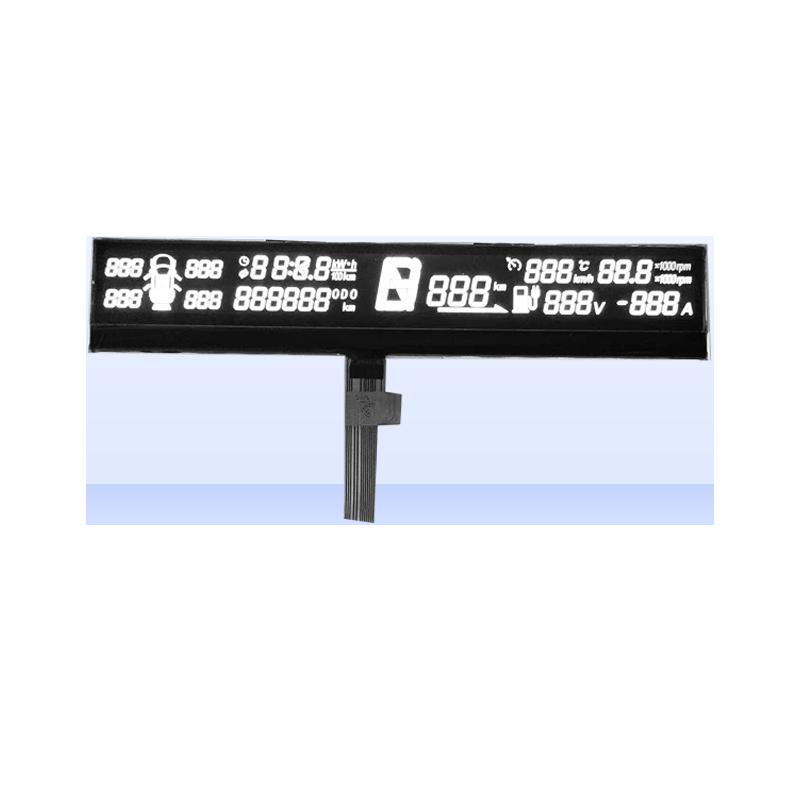

Navigation Dashboard COG LCD Display Automotive Displays For Vehicle Systems

Product Details:

Place of Origin:	China
Brand Name:	ORIENTRONIC
Certification:	SICC

Detail Information

Place of Origin:

China

Brand Name:

ORIENTRONIC

Certification:

SICC

Peak Luminance & Contrast:

≥1000 Cd/m² (daylight Readability), ≥500:1 Contrast Ratio (VA Panel).

Dynamic Refresh Rates:

≥60Hz (navigation Updates), ≤25ms Response For Real-time Visuals.

Viewing Angles (6H/12H):

Matte Surface (≤2% Reflection) For Glare Reduction.

Extended Temp Range:

-40°C To +85°C Operation With Vibration Resistance.

Anti-Oil & Chemical Coating:

Durable Surface Protection Against Contaminants.

Low Power Consumption:

Standby Current ≤5μA For Energy-efficient Designs.

Integrated Protocols:

CAN Bus/LVDS Interfaces Compatible With ARM Cortex-A Vehicle Systems; SDK Expandable.

Ultra-Thin & Lightweight:

≤1.0mm Thickness + ≤30g Weight (embedded Dashboard Fit).

Connection Reliability:

FPC/Metal Pins (molded Oxidation Prevention Vs. Zebra Strip Failures).

Touch Integration:

Resistive Layer With Anti-mistouch Algorithm; Glove Operation Support.

Highlight:

High Light

Highlight:

Navigation COG LCD Display

Dashboard COG LCD Display

automotive displays for Vehicle Systems

Trading Information

Minimum Order Quantity:

First purchase, no purchase quantity limit.

Price:

Prices are set based on design and quantity.

Packaging Details:

Prices are set based on design and quantity.

Delivery Time:

4~6 Working Days

Payment Terms:

L/C, T/T, D/A, D/P, Western Union, Paypal

Supply Ability:

200K Sets / Month

Product Description

COG Segment Code Automotive Displays - High Reliability Navigation & Dashboard Solutions for Vehicle Systems

Designed for automotive electronics, our COG (Chip-on-Glass) segment LCDs deliver crisp readability and rugged durability in demanding vehicle environments. Tailored for navigation systems, dashboard clusters, climate control panels, and infotainment screens, these displays combine ultra-thin design, low power consumption, and automotive-grade compliance to enhance driver safety and user experience.

Key Features & Specifications

1. Automotive-Optimized Durability

Wide Temperature Range: Operates at -40°C~85°C (storage: -50°C~90°C), tested for Arctic cold starts and desert heat.
Vibration Resistance: COG’s monolithic glass structure withstands 20G shocks (ISO 16750-3 compliant).
EMI Shielding: EN 55032 compliance prevents interference from engines or CAN bus systems.

2. Precision & Clarity

High Contrast (≥800:1): Sunlight-readable displays for navigation maps or speedometer readouts.
Fast Response (≤10ms): Real-time updates for dynamic data like fuel levels or traffic alerts.
Custom Segments: Preloaded icons (Navigation, temperature, alarm) or multilingual labels.
3. Seamless Integration
Ultra-Thin Design: ≤1.2mm thickness for space-saving integration into dashboards or steering wheels.
Low Power: ≤5μA standby current (extends battery life in keyless entry systems).
Automotive Interfaces: CAN/LIN bus, SPI, or I²C for direct ECU/IVI connectivity.

Technical Specifications

Parameter	Description
Segment Layout	Fully customizable (up to 128 segments)
Backlight	White LED (500 cd/m², sunlight-readable)
Voltage Range	9V~36V DC (12V/24V systems)
Certifications	AEC-Q100 Grade 2, RoHS, CE, IP65 (optional)

Customization Options

Automotive Symbols: Speed limits, gear positions, EV charging status.
Mechanical Design: Anti-glare coatings, curved edges, or waterproof sealing.
Signal Stability: Shielded connectors for CAN FD/FlexRay integration.
Driver Information: Dashboard gauges, navigation thumbnails, EV range indicators
Climate Control: HVAC settings, seat heating/cooling displays
Infotainment: Media controls, parking sensor visuals, rear-seat entertainment
Why Choose Us?

✅ Automotive Expertise: Designs validated for AEC-Q100 and ISO 16750 standards.
✅ Rapid Prototyping: Fast-track prototyping with "Priority Delivery" (subject to design complexity).
✅ Cost Efficiency: COG’s integrated design reduces assembly costs by 25% vs. COB.
