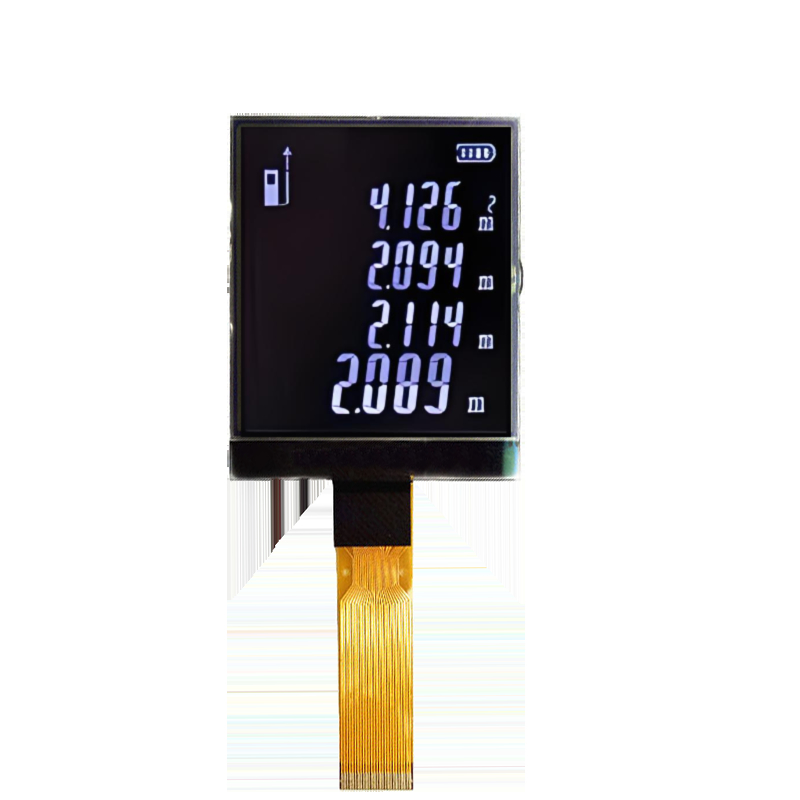

500Cd/M2 - 1500 Cd/M2 COG LCD Display Industrial Cog Module 25ms

Product Details:

Place of Origin:	China
Brand Name:	ORIENTRONIC
Certification:	SICC

Detail Information

Place of Origin:

China

Brand Name:

ORIENTRONIC

Certification:

SICC

Contrast Ratio & Peak Brightness:

≥300:1 Contrast, 500–1500 Cd/m² (nits) Brightness For Readability In Bright Environments.

Viewing Orientation:

Configurable 6H (upward View) Or 12H (downward View) Angles For Installation Flexibility.

Dynamic Response Timing:

≤25ms (real-time Systems) / ≤30ms (static Interfaces) For Smooth Operation.

Wide-Temperature Operation:

-30°C To +85°C Stability For Harsh Industrial Climates.

Anti-Oil/Anti-Chemical Coating:

Durable Surface Protection Against Oils, Solvents, And Contaminants.

Power-Efficient Operation:

Standby Current ≤3μA For Energy-saving Designs.

Multi-Protocol Connectivity:

SPI/I²C, RS485, CAN Bus Support; Compatible With Siemens PLCs, ABB HMIs; SDK Expansion Ready.

Ultra-Slim Design:

≤1.0mm Thickness + Standardized Cutout Sizes (e.g., 80×40mm) For Seamless Panel Integration.

Connection Flexibility:

Zebra Strips (cost-effective), Metal Pins (vibration-resistant), Or FPC (high-reliability) Options.

Highlight:

High Light

Highlight:

500Cd/M2 COG LCD Display

1500 Cd/M2 COG LCD Display

Industrial cog module 25ms

Trading Information

Minimum Order Quantity:

First purchase, no purchase quantity limit.

Price:

Prices are set based on design and quantity.

Packaging Details:

Prices are set based on design and quantity.

Delivery Time:

4~6 Working Days

Payment Terms:

L/C, T/T, D/A, D/P, Western Union, Paypal

Supply Ability:

200K Sets / Month

Product Description

COG Segment Code Industrial Displays - High Reliability PLC/HMI Control Panels for Automation Systems

Designed for industrial automation and control systems, our COG (Chip-on-Glass) segment LCDs deliver unmatched reliability and clarity in harsh environments. Tailored for PLCs, HMIs, fuel pump panels, and elevator controls, these displays combine ultra-thin design, low power consumption, and rugged construction to ensure 24/7 performance in factories, refineries, and infrastructure applications.

Key Features & Specifications

1. Industrial-Optimized Durability

Wide Temperature Range: Operates at -30°C~80°C (storage: -40°C~85°C), tested for foundries, cold storage, and outdoor installations.
Vibration Resistance: COG’s monolithic glass structure withstands 20G shocks (ISO 16750-3 compliant).
Chemical Resistance: Hardened surface tolerates oils, solvents, and industrial cleaners.

2. Precision & Compatibility

High Contrast (≥800:1): Clear visibility under bright factory lighting or dim control rooms.
Custom Segments: Design-specific layouts for symbols , numeric readouts, or status indicators.
Multi-Protocol Interfaces: SPI, I²C, or parallel 8-bit mode for seamless PLC/controller integration.
3. Energy Efficiency
Ultra-Low Power: ≤3μA standby current (10+ years on backup batteries for critical systems).
Wide Voltage Support: 3.3V~5.5V DC (compatible with 12V/24V industrial power rails).

Technical Specifications

Parameter	Description
Segment Layout	Fully customizable (up to 128 segments)
Thickness	≤1.2mm (ultra-slim for compact panels)
Backlight	LED optional (200 cd/m², flicker-free)
Certifications	CE, RoHS, IP65 (dust/waterproof)

Customization Options

Industrial Icons: Preloaded symbols (Pressure, flow rate, fault) or multilingual labels.
Mechanical Tweaks: Anti-glare coatings, metal bezels, or tamper-proof mounting.
Signal Integrity: EMI shielding for high-noise environments (EN 61000-4-2/4-4).
Target Applications
PLC/HMI Systems: Real-time parameter displays, fault diagnostics, production counters
Fuel Dispensers: Price per liter, total volume, payment status screens
Why Partner with Us?

✅ Industrial Expertise: Validated for 100,000+ operational hours in extreme conditions.
✅ Fast Prototyping: Fast-track prototyping with "Priority Delivery" (subject to design complexity).
✅ Cost Efficiency: COG’s streamlined design reduces assembly costs by 30% vs. COB.

Service Commitment
Lead Time: 4–6 weeks (scalable for high-volume orders).
Support: Lifetime technical assistance for firmware/PCB integration.
