1.3-inch, 128×64, IC (SSD1306/SH1106) OLED display

Product Details:

Place of Origin:	China
Brand Name:	ORIENTRONIC

Detail Information

Place of Origin:

China

Brand Name:

ORIENTRONIC

Dimensions:

1.30-inch OLED Screen

Resolution:

128×64

Interface Types:

SPI/I²C/8-bit Parallel

Control Chip:

SSD1306/SH1106 (select As Needed)

Display Colors:

White/Blue

Display Area:

29.42 X 14.7 (mm)

Panel Dimensions:

34.5 X 23 X 1.4 (mm)

Pixel Pitch:

0.23 X 0.23 (mm)

Pixel Size:

0.21 X 0.21 (mm)

Flat Cable Length:

12 (mm)

Number Of Pins:

30-pin (0.7 Mm Pitch)

Viewing Angle:

Full Viewing Angle

Operating Temperature:

-40 To 70°C

Highlight:

High Light

Highlight:

1.3-inch OLED display SSD1306

128×64 resolution OLED display

SH1106 passive matrix OLED

Trading Information

Minimum Order Quantity:

First purchase, no purchase quantity limit

Price:

Prices are set based on design and quantity.

Packaging Details:

Prices are set based on design and quantity.

Delivery Time:

4~6 Working Days

Payment Terms:

L/C, T/T, D/A, D/P, Western Union, Paypal

Supply Ability:

Design based on the product

Product Description

1.30-inch OLED display size

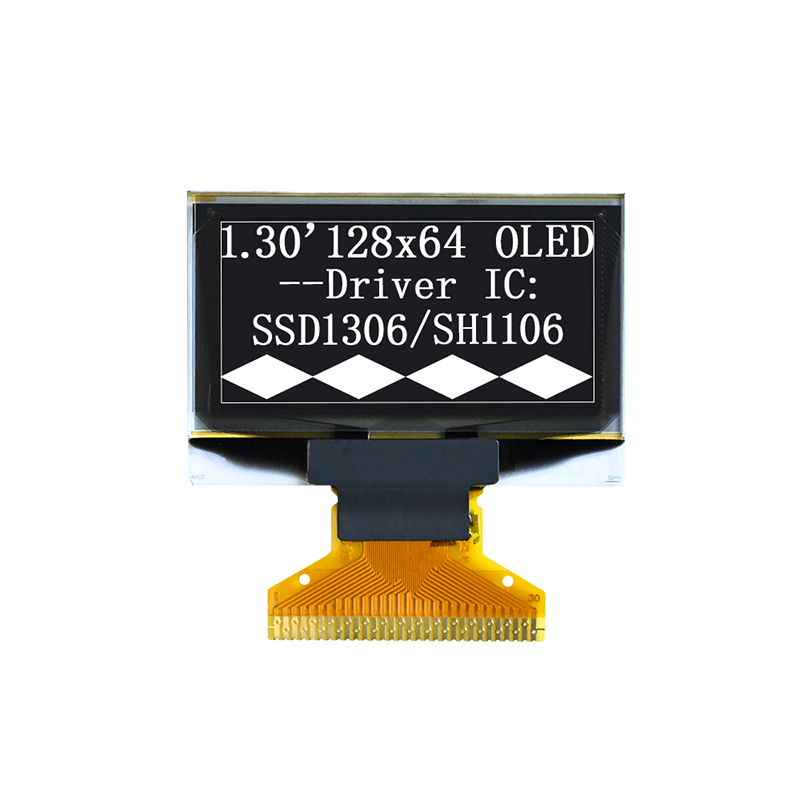

1.3-inch, 128×64, IC (SSD1306/SH1106) OLED display 0

Product Details of the 1.30-inch OLED Display

1.3-inch, 128×64, IC (SSD1306/SH1106) OLED display 1

1.30-inch OLED Display Interface Specifications

Pin	Symbol	Pin	Symbol
1	N.C.(GND)	16	R/W#
2	C2P	17	E/RD#
3	C2N	18	D0
4	C1P	19	D1
5	C1N	20	D2
6	VBAT	21	D3
7	N.C.	22	D4
8	VSS	23	D5
9	VDD	24	D6
10	BS0	25	D7
11	BS1	26	IREF
12	BS2	27	VCOMH
13	CS#	28	VCC
14	RES#	29	VLSS
15	D/C#	30	N.C.
