| Place of Origin: | China |
| Brand Name: | ORIENTRONIC |
| Certification: | SICC |

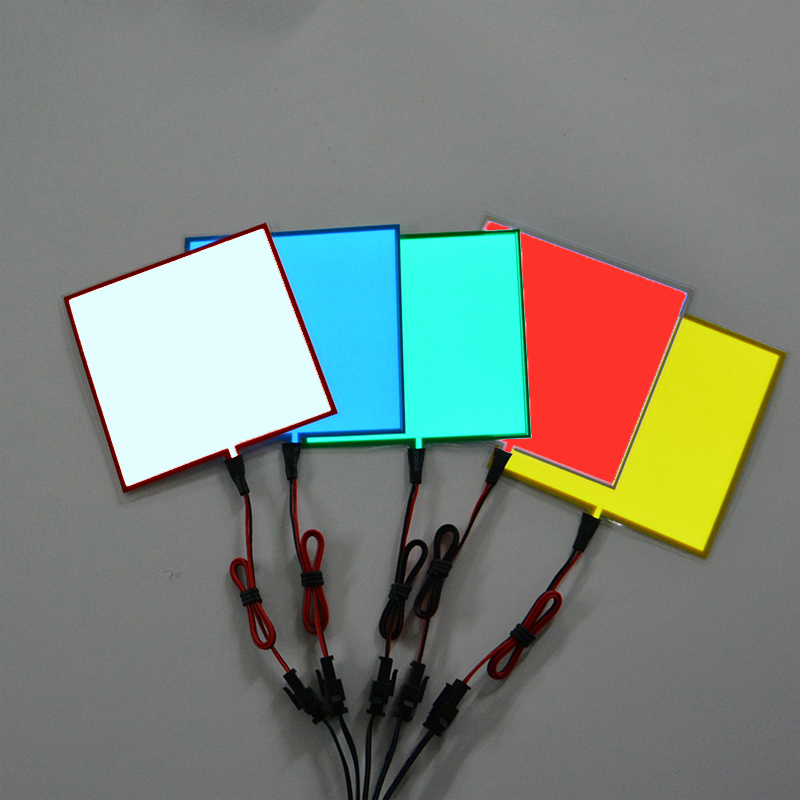

Our advanced Electroluminescent (EL) Backlight Units deliver precise, uniform illumination for small reflective LCD displays, combining ultra-slim profiles, low power consumption, and exceptional durability. Designed for integration into compact devices, these backlights excel in applications demanding lightweight construction, consistent brightness, and long-term reliability. With customizable optical components—including light guides, diffusers, and prism films—our EL solutions ensure optimal performance for industrial, medical, and consumer electronics.
Key Features & Technical Specifications
1. Core Components
Light Guide Plate (LGP): Converts point-source light into uniform surface illumination using precision-etched or printed dot patterns.
Materials: PMMA, PC, or glass substrates.
Thickness: 0.3mm–2.0mm (customizable for compact designs).
Diffuser Film: Eliminates hotspots and ensures even light distribution.
Options: Micro-lens or bead-coated films.
Brightness Enhancement Film (BEF): Boosts frontal luminance by 1.5x–2x with prismatic microstructures.
Gain: 1.5–2.0 (adjustable per application).
Reflector Sheet: Minimizes light loss with >95% reflectivity (ESR or silver-coated PET).
Structural Components:
Backplates: Aluminum (for heat dissipation) or plastic (lightweight).
Frames: Customizable plastic/metal bezels for mechanical stability.
LED Mounts: Secure side-lit or direct-lit LED placement.
2. Technical Highlights
Light Source Options:
Consumer Electronics: Ultra-thin side-lit white LED arrays (0.5mm–3mm thickness).
Professional Displays: High-color-accuracy RGB LEDs or MiniLEDs (90%+ NTSC gamut).
Large-Scale Devices: Direct-lit LED modules with local dimming zones (100–1,500 nits).
Power Efficiency: 3V–24V DC input, <1W power consumption for small units.
Uniformity: >85% brightness uniformity (adjustable via LGP/diffuser tuning).
Lifetime: 30,000–50,000 hours (depending on LED type and usage).
Operating Temperature: -30°C to 80°C (industrial-grade options available).
Ideal Applications
Consumer Electronics: Smartwatches, calculators, handheld scanners.
Medical Devices: Portable monitors, glucose meters, surgical tools.
Industrial Equipment: Control panels, instrumentation, IoT sensors.
Automotive: Dashboard displays, rearview mirror screens.
Aerospace: Cockpit readouts, compact avionics systems.
Why Choose Us?
Tailored Designs: Optimize LGP dot patterns, film stacks, and LED configurations for your LCD.
Samples: Fast-track prototyping with "Priority Delivery" (subject to design complexity).
Production Lead Time: 4–6 weeks (scalable for high-volume orders).
End-to-End Support: Lifelong technical assistance for optical tuning, thermal management, and defect resolution.
