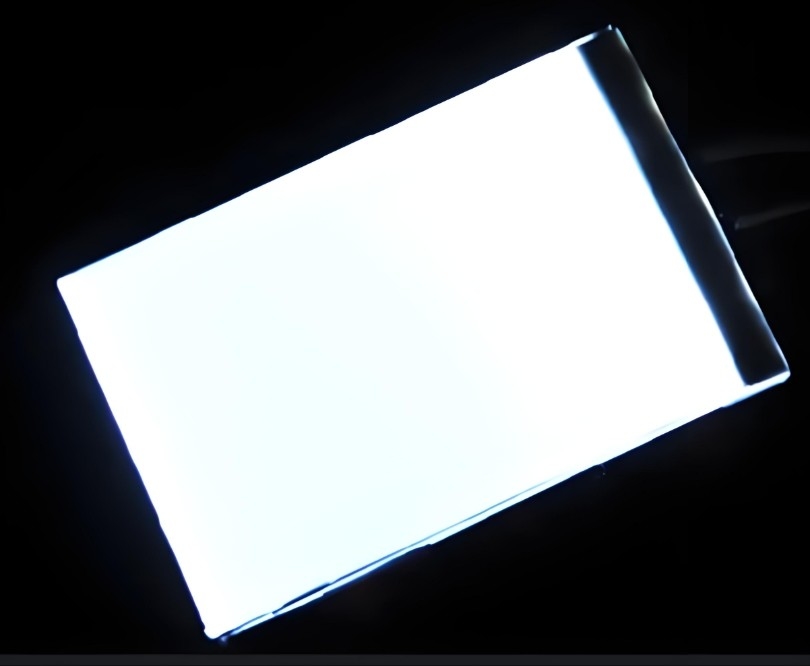

Customizable Backlight Unit High Brightness El Backlight For Industrial LCD Panels

Product Details:

Place of Origin:	China
Brand Name:	ORIENTRONIC
Certification:	SICC

Detail Information

Place of Origin:

China

Brand Name:

ORIENTRONIC

Certification:

SICC

Brightness:

250–400 Cd/m² (default LED Backlight)

Light Source Technology:

LED Backlight (low Power Consumption, High Contrast Ratio, Wide Color Gamut)

Contrast Ratio:

Standard Range 8:1–15:1

Color Gamut Coverage:

Traditional LCD Color Gamut ≈ NTSC 72%

Viewing Angle:

Default ±60° (Horizontal/Vertical)

Operating Temperature:

Standard Range -30°C To +80°C

Universal Interface:

To Be Determined Based On Design Drawings/consultation

Drive Voltage:

To Be Determined Based On Design Drawings/consultation

Resolution:

To Be Determined Based On Design Drawings

Highlight:

High Light

Highlight:

Customizable Backlight Unit

Backlight Unit High Brightness

Industrial el backlight

Trading Information

Minimum Order Quantity:

First purchase, no purchase quantity limit.

Price:

Prices are set based on design and quantity.

Packaging Details:

Prices are set based on design and quantity.

Delivery Time:

4~6 Working Days

Payment Terms:

L/C, T/T, D/A, D/P, Western Union, Paypal

Supply Ability:

200K Sets / Month

Product Description

Our LED Backlight Units (BLUs) are precision-engineered to deliver uniform brightness, energy efficiency, and long-term reliability for LCD displays across industries. Designed for OEMs and system integrators, these backlights enhance visual clarity in diverse environments while supporting full customization for size, brightness, and durability.

Key Features

High Brightness & Uniformity
- 200–1,500 cd/m² (adjustable) | >85% uniformity across the panel.
Energy Efficiency
- 20–30% lower power consumption vs. traditional CCFL backlights.
Long Lifespan
- 50,000+ hours (typical LED lifespan).
Customizable Designs
- Edge-lit or direct-lit configurations | Flexible thickness (2mm–15mm).

Technical Specifications

Parameter	Specification
Light Source	SMD LEDs (default)	COB LEDs optional
Brightness	200–1,500 cd/m² (customizable)
Color Temperature	3,000K–10,000K (warm white to cool white)
Power Consumption	1W–30W (size and brightness dependent)
Operating Voltage	5V–48V DC (customizable)
Temperature Range	-30°C to +80°C (extended range optional)
Dimming Control	PWM/DC dimming (0–100%)

Applications

Industrial HMI: Control panels, PLC interfaces, machinery displays.
Medical Devices: Surgical monitors, diagnostic equipment.
Retail & Hospitality: Digital signage, POS systems.
Automotive: Dashboard displays, infotainment systems.
Consumer Electronics: Smart home devices, gaming monitors.

Customization & Services

Tailored Designs
- Custom sizes, shapes, and optical films (diffuser/prism).
Environmental Protection
- IP54/IP65 sealing, anti-glare coatings, wide-temperature variants.
Certifications
- RoHS, CE, REACH compliant | UL/cUL optional.

Ordering & Support

Samples: Prioritized based on availability – request prototypes to test performance.
Production: Flexible lead times – delivery schedules negotiated per project complexity.
After-Sales: Lifelong technical support – troubleshooting, optical tuning, and replacement guidance.
