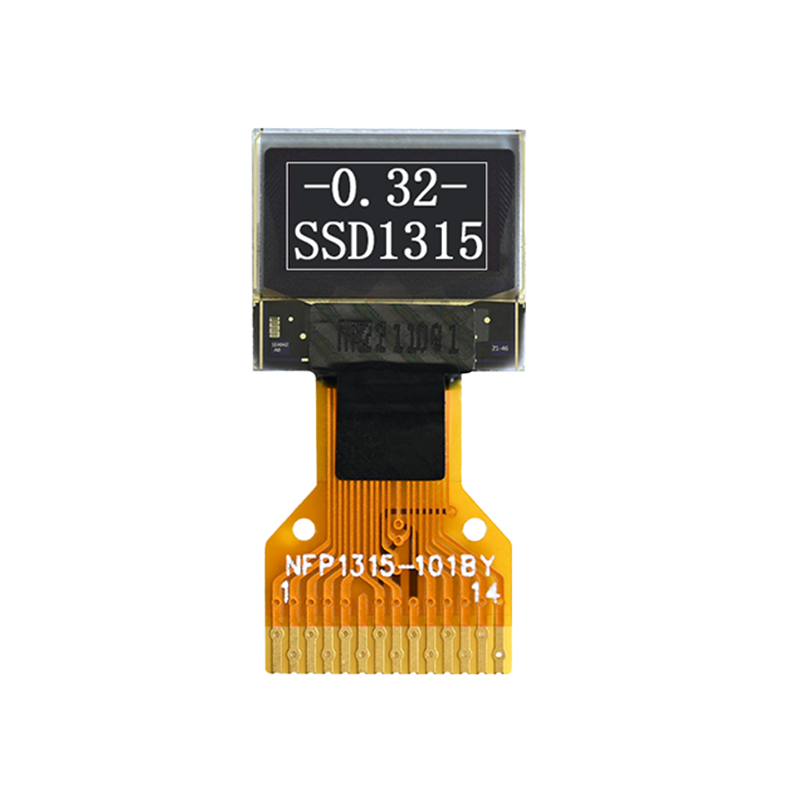

0.32-inch 60x32 OLED Display Module, SSD1315 Driver IC, I2C Interface
0.32-inch 60x32 OLED Display Module, SSD1315 Driver IC, I2C Interface
  • 0.32-inch 60x32 OLED Display Module, SSD1315 Driver IC, I2C Interface
  • 0.32-inch 60x32 OLED Display Module, SSD1315 Driver IC, I2C Interface
  • 0.32-inch 60x32 OLED Display Module, SSD1315 Driver IC, I2C Interface
  • 0.32-inch 60x32 OLED Display Module, SSD1315 Driver IC, I2C Interface
  • 0.32-inch 60x32 OLED Display Module, SSD1315 Driver IC, I2C Interface

0.32-inch 60x32 OLED Display Module, SSD1315 Driver IC, I2C Interface

Product Details:
Place of Origin: China
Brand Name: ORIENTRONIC
Detail Information
Place of Origin:
China
Brand Name:
ORIENTRONIC
Size:
0.32-inch OLED Screen
Resolution:
60×32
Interface Type:
IIC
Control Chip:
SSD1315
Display Color:
White
Display Area:
7.06 × 3.82 (mm)
Panel Dimensions:
9.96 X 8.85 X 1.2 (mm)
Pixel Pitch:
0.118 X 0.12 (mm)
Pixel Size:
0.098 X 0.10 (mm)
Number Of Pins:
14-pin (0.62 Mm Top-mounted)
Viewing Angle:
Full Viewing Angle
Operating Temperature:
-40 To 70°C
Highlight:

High Light

Highlight:

0.32-inch OLED display module

,

SSD1315 driver IC OLED

,

I2C interface OLED module

Trading Information
Minimum Order Quantity:
First purchase, no purchase quantity limit.
Price:
Prices are set based on design and quantity.
Packaging Details:
Prices are set based on design and quantity.
Delivery Time:
4~6 Working Days
Payment Terms:
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability:
Design based on the product
Product Description

0.32-inch OLED display size

0.32-inch 60x32 OLED Display Module, SSD1315 Driver IC, I2C Interface 0

Product Details of the 0.32-inch OLED Display

0.32-inch 60x32 OLED Display Module, SSD1315 Driver IC, I2C Interface 1

Pinout for the 0.32-inch OLED Display

Pin Symbol Pin Symbol
1 C2P 8 VDD
2 C2N 9 RES#
3 C1P 10 SCL
4 C1N 11 SDA
5 VBAT 12 IREF
6 NC 13 VCOMH
7 VSS 14 VCC

Structural Parameter Drawings for a 0.32-inch OLED Display

0.32-inch 60x32 OLED Display Module, SSD1315 Driver IC, I2C Interface 2
