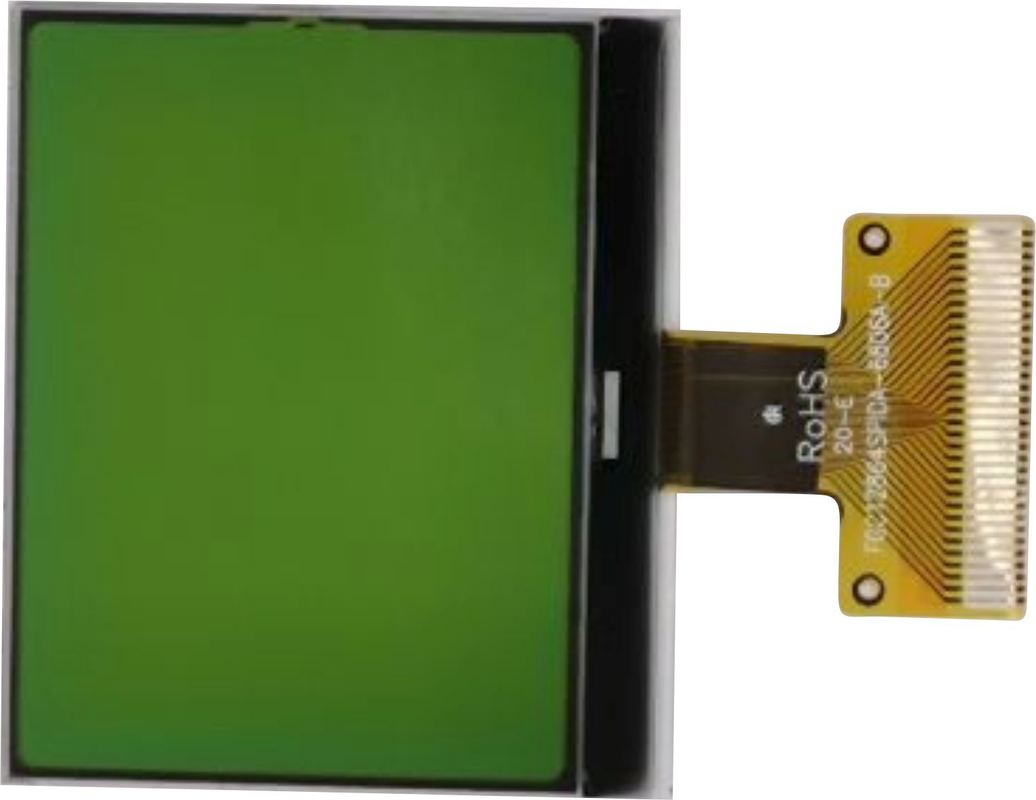

1.MECHANICAL SPECIFICATIONS
|
ITEM
|
SPECIFICATIONS
|
UNIT
|
|
Module Size
|
54.5L×46.75W×5.3(max)H
|
mm
|
|
View Area
|
49.4×36.0
|
mm
|
|
Effective Area
|
128×64
|
dot
|
|
Dot Size
|
0.32×0.44
|
mm
|
|
Dot Pitch
|
0.35×0.47
|
mm
|
2.PIN DESCRIPTION
|
ITEM
|
SYMBOL
|
LEVEL
|
FUNCTION
|
| 1 |
VSS
|
0V
|
Power ground
|
| 2 |
CS1B
|
H/L
|
Chip selection signal 1
|
| 3 |
CS2
|
H/L
|
Chip selection signal 2
|
| 4 |
RST
|
H/L
|
Reset signal
|
| 5 |
A0
|
H/L
|
H:Data L:Command
|
| 6 |
R/W
|
H/L
|
H:Read L:Write
|
| 7 |
E
|
H.H->L
|
Enable singal
|
| 8-15 |
D0-D7
|
H/L
|
Data bus
|
| 16 |
VDD
|
3.3V
|
Power supply voltage for logic
|
| 17 |
VSS
|
0V
|
Power ground
|
| 18 |
VOUT
|
-
|
DC/DC voltage converter
|
| 19 |
CAP3+
|
-
|
DC/DC voltage converter
|
| 20 |
CAP1-
|
-
|
DC/DC voltage converter
|
| 21 |
CAP1+
|
-
|
DC/DC voltage converter
|
| 22 |
CAP2+
|
-
|
DC/DC voltage converter
|
| 23 |
CAP2-
|
-
|
DC/DC voltage converter
|
| 24-28 |
V4-V0
|
H
|
Multi-level power supply for the liquid crystal drive
|
| 29 |
VR
|
H
|
Output voltage regulator terminal
|
| 30 |
C86
|
H/L
|
MPU interface selection pin
|
| 31 |
PSB
|
H/L
|
Interface selection signal (H:Parallel L:Serial)
|
| 32 |
IRS
|
H/L
|
This terminal selects the resistors for the V0 voltage level
adjustment
|
3.MAXIMUM ABSOLUTE LIMIT (T=25°C)
|
Items
|
Symbol
|
Min
|
Max
|
Unit
|
Condition
|
|
Supply Voltage
|
Vdd
|
1.7
|
3.3
|
V
|
Vss=0V
|
|
Input Voltage
|
Vin
|
0
|
Vdd
|
V
|
Vss=0V
|
|
Operating Temperature
|
Top
|
-20
|
+70
|
℃
|
No Condensation
|
|
Storage Temperature
|
Tst
|
-30
|
+80
|
℃
|
No Condensation
|
