| Place of Origin: | China |
| Brand Name: | ORIENTRONIC |
| Certification: | SICC |

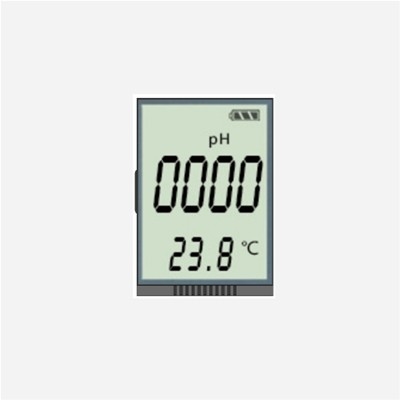

TN Displays for Test Equipment: Custom Industrial LCD Screens | Low-Cost & Durable
Our COB-TN Segment Displays are engineered for test and measurement instruments, offering simple numeric/symbol visualization, ultra-low power consumption, and industrial durability. Combining Chip-on-Board (COB) packaging with Twisted Nematic (TN) technology, these screens provide reliable, cost-effective solutions for handheld devices, benchtop analyzers, and factory-floor testers.
Custom Symbol Integration
Preloaded with common unit symbols (mV, kPa, °C) – reduce development time.
Wide Environmental Tolerance
-20°C to +70°C operation | IP54 sealing optional for dusty/humid environments.
Battery-Friendly Design
0W static power | 3.3V/5V or 2.7V–3.6V support for portable devices.
Industrial Longevity
COB encapsulation resists vibration, dust, and chemical exposure.
| Parameter | Specification | |
|---|---|---|
| Display Type | COB-TN Segment LCD | |
| Contrast Ratio | 5:1–8:1 (enhanced with optional backlight) | |
| Viewing Angle | 120°(H)/100°(V) (single-user optimized) | |
| Character Height | 5mm–20mm (customizable to panel size) | |
| Backlight | Green LED (default) | Red/Amber optional |
| Interface | 4–8-bit parallel (pin-compatibility assured) | |
| Lifespan | 50,000+ hours (LED backlight) |
Handheld Testers: Multimeters, pressure gauges, thermometers.
Industrial Controllers: PLC interfaces, calibration tools.
Medical Diagnostics: Portable blood analyzers, vital sign monitors.
Automotive Testing: Battery checkers, emission analyzers.
Tailored for Testers
Custom character heights, symbol libraries, and bezel designs.
Environmental Upgrades
Wide-temperature models (-30°C to +85°C), IP54/IP65 sealing.
Certifications
RoHS, CE compliant | ISO 13485 (medical) or IEC 61010 (industrial) optional.
Samples: Prioritized based on stock – prototypes shipped in 10 - 20 days.
Production: Flexible lead times – align with your product launch.
After-Sales: Lifetime support – pinout guides, driver code samples (Arduino/C).
Cost Efficiency: 30% lower than HTN/STN alternatives.
Fast Turnkey Service: CAD design support for electrode layouts.
Global Compliance: Pre-certified for EU/NA/Asian markets.
Proven Expertise: 10+ years supplying displays to Fluke, Keysight, and more.
Share your specs:
Symbol library, operating environment, and certifications.
Request a quote or samples:
No MOQ for prototyping.
Upgrade your test equipment with reliable COB-TN displays – contact us today!
