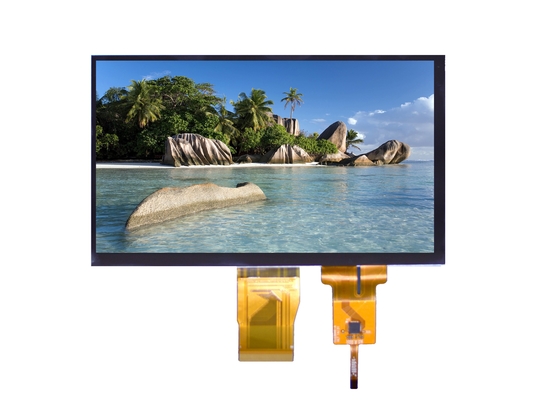

7.0 Inch TFT LCD Display Module, 1024x600Dots, 50 Pin RGB Interface, Capactive Touch Panel

Product Details:
Place of Origin: China
Brand Name: ZP
Certification: ROHS , REACH , ISO9001 , ISO14001
Model Number: ZP70100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiated
Packaging Details: Foam package/Anti-static bag package/Carton box
Delivery Time: Within 7 working days
Payment Terms: T/T, Paypal
Supply Ability: More than 100000 pieces per month

Detail Information

Display Size: 7.0 Inch Resolution: 1024 ( RGB ) X 600
Outline Dimension: 164.90 X 100.00 X 5.20mm Interface: 24 Bit RGB
Operating Temperature: -20 To 70 ℃ Storage Temperature: -30 To 80 ℃
Touch Panel: With Capactive Touch Panel Brightness: 300cd/m2
Contrast Ratio: 1000:1 Viewing Angle: 178°
High Light:

7.0Inch 90mA TFT LCD Display Module

,

TFT LCD Display Module 50Pin 90mA

,

1024x600 TFT LCD Display Module

Product Description

TFT LCD Display Module 7.0 Inch 1024x600Dots 50 Pin RGB Inerface With Capactive Touch Panel

ZP70030 is a transmissive type a-Si TFT LCD Display module , which is composed of a TFT-LCD panel , a driver circuit and a backlight unit . The panel size is 7.0 inch and the resolution is 800 ( RGB ) x 480 , the panel can display up to 16 M colors . The LCM can be easily accessed by micro-controller via parallel interface .

TFT LCD Display Key Specifications / Special Features :

Display Size 7.0 Inch Resolution 1024 ( RGB ) X 600
Outline Dimension 164.90 x 100.00 x 5.20 mm Interface 24 Bit RGB
Operating Temperature -20 To 70 ℃ Viewing Direction 6 O'clock
Storage Temperature -30 To 80 ℃ Touch Panel With Resitive Touch Panel

Active area

154.08 x 85.92 mm

Driver IC

ST5623 & ST5091

Contrast ratio

600 : 1

Storage Temperature

-30 To 80 ℃

Viewing angle

70 / 70 / 60 / 60

Backlight

White LED x 18

Current 90 mA FPC Connector 50 pin





LCD Display Module Applications



Digital products , POS machine , instrument & meter , automobile electronics , communication machine , medical machine , security machine ,  household electrical appliances and others .



Packing term



Protect product with polyfoam and multi layer paper board .

Special protect carton for exporting product .

Per customer requirement .



TFT LCD Display Module Delivery term



For samples , we will finish production and ship within 7 working days . We usually arrange DHL , UPS , FedEx express to ship samples .

For bulk orders , usually 30 working days and depends on your design . For bulk orders, we support shipping by air or by sea as per customers' requirements .



Custom design OEM/ODM solutions



We support both standard and customized products and can put your logo on the products . Our experienced R&D team will support technical questions . ODM/OEM products are warmly welcome .



Our Advantages



Prompt reply within 12 hours .

Products with top quality .

Very competitive prices .

Small MOQ accepted .

More than 10 years’ experience in LCD R&D and manufacturing .

Strong R&D term supports perfect customized projects .

Fabulous after-sale service .



TFT LCD Display Module 7.0 Inch Mechanical Drawing



7.0 Inch TFT LCD Display Module, 1024x600Dots, 50 Pin RGB Interface, Capactive Touch Panel 0

7.0 Inch TFT LCD Display Module, 1024x600Dots, 50 Pin RGB Interface, Capactive Touch Panel 1
