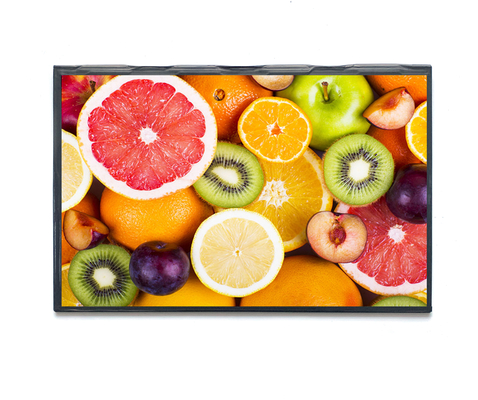

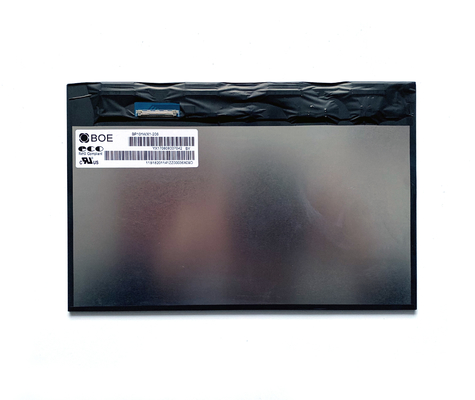

10.1 Inch BOE Industrial TFT Display LVDS

10.1 Inch BOE Industrial TFT Display LVDS
10.1 Inch BOE Industrial TFT Display LVDS 10.1 Inch BOE Industrial TFT Display LVDS 10.1 Inch BOE Industrial TFT Display LVDS

10.1 Inch BOE Industrial TFT Display LVDS

Product Details:
Place of Origin: China
Brand Name: BOE
Certification: ROHS , REACH , ISO9001 , ISO14001
Model Number: BP101WX1-206
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiated
Packaging Details: Foam package/Anti-static bag package/Carton box
Delivery Time: Within 7 working days
Payment Terms: T/T, Paypal
Supply Ability: More than 100000 pieces per month
Contact Now

Detail Information
Panel Size: 10.1 Inch Brand: BOE
Resolution: 1280 X 800 Dots Outline Dimension: 229.6*149.2*2.6 Mm
Active Area Size: 216.96*135.60 Mm View Direction: ALL
Designed For: Pad & Tablet Interface Type: LVDS (1 Ch, 8-bit) , 40 Pins Connector
High Light:

40pins 10.1Inch Industrial TFT Display

,

LVDS MIPI Industrial TFT Display 40pins

,

BOE MIPI Industrial TFT Display

Product Description

Industrial TFT Display , BP101WX1-206 10.1 Inch BOE LCD Module1280x 800 Dots 40 Pins FPC LVDS

BP101WX1-206 10.1 Inch BOE 1280x 800 Dots Industrial TFT Display Key Specifications/Special Features:

BOE Technology Group Co., Ltd. (hereafter called BOE) BP101WX1-206 is a 10.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized in the following: WLED Backlight, With LED Driver, Reverse I/F, Glossy . Based on its features, we recommend that this model be applied to Pad & Tablet etc.

Panel typeI IPS type
Panel size 10.1 inch
Resolution 1280 (RGB) x 800 dots
Outline dimension 229.6*149.2*2.6 mm
Active area Size 216.96*135.60 mm
Viewing direction ALL
Viewing angle(U/D/L/R) 80/80/80/80 degree
Contrast ratio 600:1
Brightness 330 cd/m2
Interface MIPI
PIN number 40
Operating temperature 0 to 50°C
Storage temperature -20 to 60°C
With Touch Panel or NOT Without



Brand BOE
Model BP101WX1-206
Diagonal Size 10.1 inch
Type a-Si TFT-LCD , LCM
Pixel Format 1280(RGB)×800 [WXGA] 149PPI
Configuration RGB Vertical Stripe
Active Area 216.96(H)×135.6(V) mm
Outline Dim. 228.6(H)×149.2(V) ×4.59(D) mm
Bezel Area 220.46(H)×139.25(V) mm
Treatment Glare (Haze 0%), Hard coating (3H), Antireflection
Luminance 330 cd/m² (Typ.)
Contrast Ratio 600:1 (Min.) (TM)
View Direction Symmetry
Response Time 25 (Typ.)(Tr+Td)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode ADS, Normally Black, Transmissive
Support Color 16.7M 50% NTSC
Light Source WLED , 15K hours , With LED Driver
Weight 150g (Max.)
Designed For Pad & Tablet
Frame Rate 60Hz
Touch Panel Without
Interface Type LVDS (1 ch, 8-bit) , 40 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C



BP101WX1-206 10.1 Inch BOE 1280x 800 Dots Industrial TFT Display Applications



Digital products, POS machine, instrument & meter, automobile electronics, communication machine, medical machine, security machine, household electrical appliances and others



BP101WX1-206 10.1 Inch BOE 1280x 800 Dots Industrial TFT Display Packing term



Protect product with polyfoam and multi layer paper board.

Special protect carton for exporting product,

Per customer requirement.





BP101WX1-206 10.1 Inch BOE 1280x 800 Dots Industrial TFT Display Delivery term



For samples, we will finish production and ship within 7~15 working days. We usually arrange DHL, UPS, FedEx express to ship samples.

For bulk orders, usually 25~35 working days and depends on your design. For bulk orders, we support shipping by air or by sea as per customers' requirements.





Custom design OEM/ODM solutions



We support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM products are warmly welcome.





Our Advantages



Prompt reply within 12 hours.

Products with top quality.

Very competitive prices.

Small MOQ accepted.

More than 10 years’ experience in LCD R&D and manufacturing.

Strong R&D term supports perfect customized projects.

Fabulous after-sale service.



BP101WX1-206 10.1 Inch BOE 1280x 800 Dots Industrial TFT Display Mechanical Drawing

10.1 Inch BOE Industrial TFT Display LVDS 0
