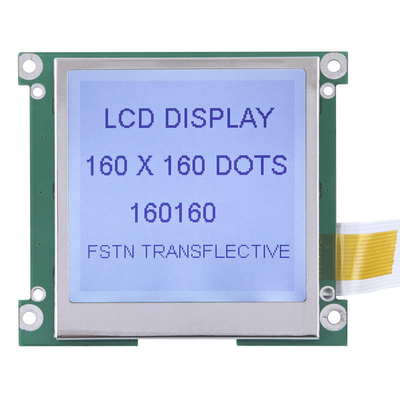

160x160 Dots Fstn Lcd Display COG

Product Details:
Place of Origin: China
Brand Name: ZP
Certification: ROHS , REACH , ISO9001 , ISO14001
Model Number: ZP160160G-FF62L
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiated
Packaging Details: Foam package/Anti-static bag package/Carton box
Delivery Time: Within 7 working days
Payment Terms: T/T, Paypal
Supply Ability: More than 100000 pieces per month

Detail Information

Display Format: 160 X 160 Dots Display Type: COG LCD Module
Viewing Angle: 6 O'clock Display Mode: FSTN Gray Transflective Positive
VDD: 3.0 V Active Area Size: 54.38 (W) X 54.38 (H) Mm
Operating Temperature: -25 ℃ To 70℃ Storage Temperature: -30 ℃ To 80 ℃
Driver IC: UC1617W FPC: 26 Pins
Module Size: 83.8(W) × 76.5(H) × 9.6max (T) Mm Viewing Area Size: 60.0(W) × 60.0(H) Mm
Dot Size: 0.32(W) × 0.32(H) Mm Dot Pitch: 0.34(W) × 0.34(H) Mm
High Light:

160x160 fstn lcd display

,

COG fstn lcd display

,

160x160 cog lcd display

Product Description

Graphic LCD Display Module, 160x160 Dots 60x60 mm View Area Size FSTN Transflective COG LCD Module



Display Format: 160 X 160 Dots Display Type: COG LCD Module
Viewing Angle: 6 O'clock Display Mode: FSTN Gray Transflective Positive
VDD: 3.0 V Active Area Size: 54.38 (W) X 54.38 (H) Mm
Operating Temperature: -25 ℃ To 70℃ Storage Temperature: -30 ℃ To 80 ℃
Driver IC: UC1617W FPC: 26 Pins
Module Size: 83.8(W) × 76.5(H) × 9.6max (T) Mm Viewing Area Size: 60.0(W) × 60.0(H) Mm
Dot Size: 0.32(W) × 0.32(H) Mm Dot Pitch: 0.34(W) × 0.34(H) Mm



Features:



Display format: 160 × 160 dot-matrix ; 1/160 duty

Display mode: FSTN /Transflective/positive

Structure : LCD, Bezel, Zebra and PCB

Controller: UC1698u

Module size: 83.8(W) × 76.5(H) × 9.6max (T) mm

Viewing area size: 60.0(W) × 60.0(H) mm

Dot size: 0.32(W) × 0.32(H) mm

Dot pitch: 0.34(W) × 0.34(H) mm

LCD Driving Voltage: -3.3 to 16.5 V

Operating temperatures: -25 to 70°C

Storage temperatures: -30 to 80°C

View direction:6 o’clock

  •

Applications



Digital products, POS machine, instrument & meter, automobile electronics, communication machine, medical machine, security machine, household electrical appliances and others



Packing term



Protect product with polyfoam and multi layer paper board.

Special protect carton for exporting product,

Per customer requirement.





Delivery term



For samples, we will finish production and ship within 7~15 working days. We usually arrange DHL, UPS, FedEx express to ship samples.

For bulk orders, usually 25~35 working days and depends on your design. For bulk orders, we support shipping by air or by sea as per customers' requirements.





Custom design OEM/ODM solutions



We support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM products are warmly welcome.





Our Advantages



Prompt reply within 12 hours.

Products with top quality.

Very competitive prices.

Small MOQ accepted.

More than 10 years’ experience in LCD R&D and manufacturing.

Strong R&D term supports perfect customized projects.

Fabulous after-sale service.



Graphic LCD Display Module 160x160 dots Mechanical Drawing
