TFT 7 Inch 1024x600 7 Inch IPS LCD Display Module 50 Pin For Tablet

Minimum Order Quantity : 1 Piece Price : Negotiated
Packaging Details : Foam package / Anti-static bag package / Carton box Delivery Time : Within 7 working days
Payment Terms : T/T, Paypal Supply Ability : More than 100000 pieces per month
Place of Origin: China Brand Name: ZP
Certification: ROHS , REACH , ISO9001 , ISO14001 Model Number: T7S150B-E8

Detail Information

Display Size: 7.0 Inch Display Resolution: 1024 ( RGB ) X 600 Dots
Outline Dimension: 164×97×2.6 Mm Interface: 24 Bit RGB
Viewing Direction: All Touch Panel: Without Touch Panel
Operating Temperature: -10 To 50 ℃ Storage Temperature: -20 To 60 ℃
High Light:

7 Inch IPS LCD Display Module

,

IPS LCD Display Module 50Pin

,

ips tft lcd display 50Pin

Product Description

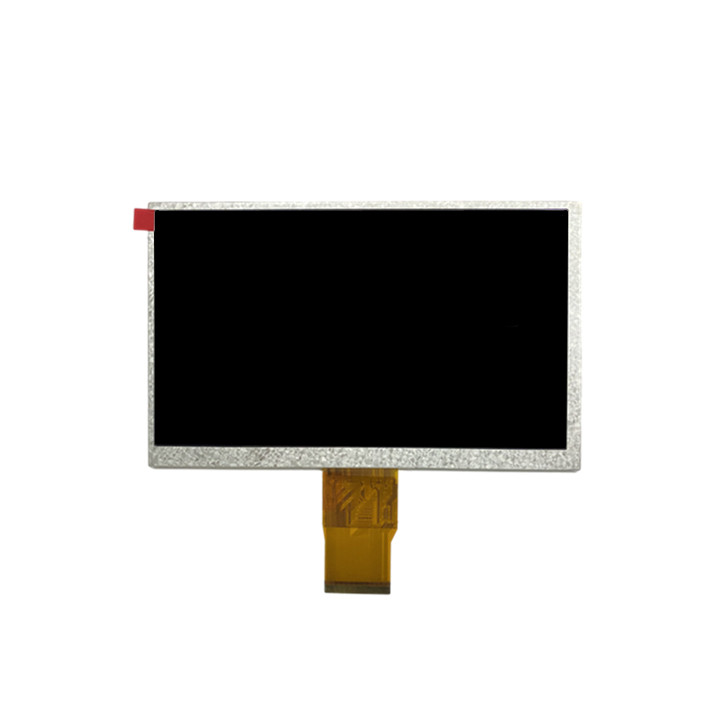

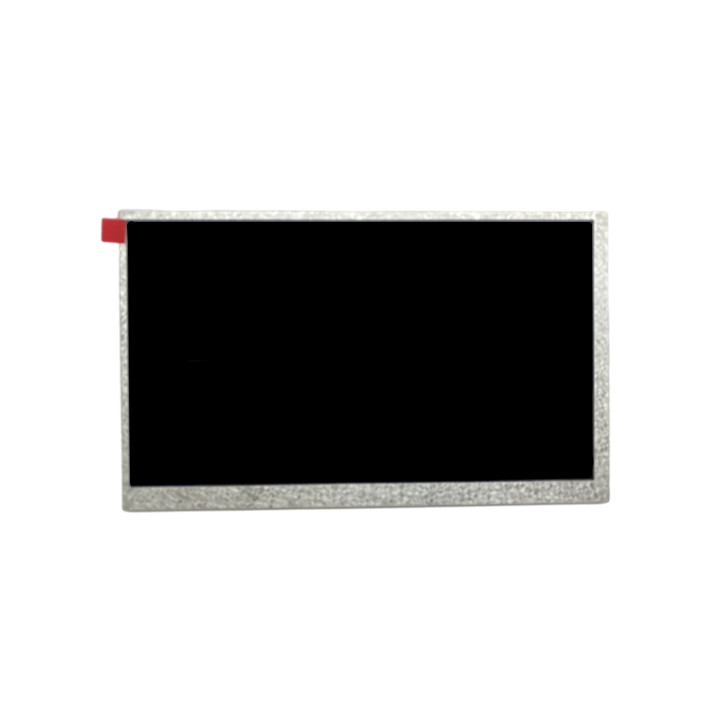

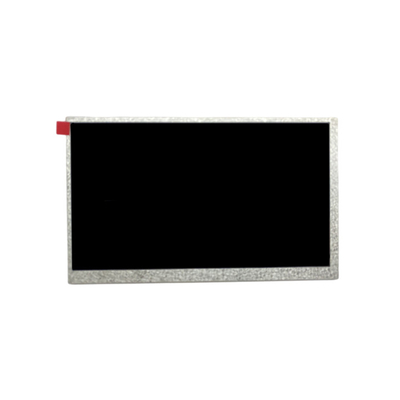

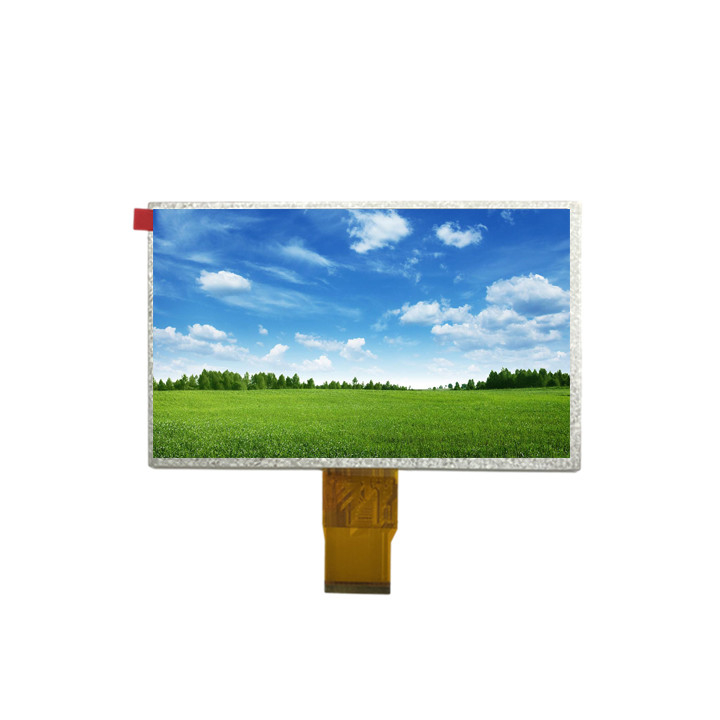

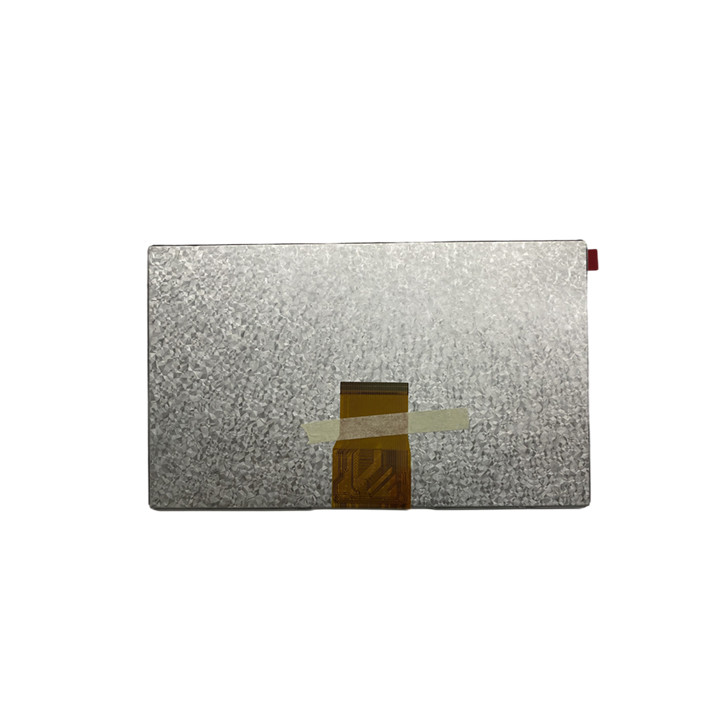

TFT LCD Display Module 7 Inch 1024x600 7 Inch IPS LCD Display Module 50 Pin for Tablet


TFT LCD Display Module 7 inch Quick Details

  • T7S150B-E8 is a transmissive type a-Si TFT LCD Display module, which is composed of a TFT-LCD panel, a driver circuit and a backlight unit.
  • The panel size is 7.0 inch and the resolution is 1024 ( RGB ) x 600 dots, the panel can display up to 16 M colors.
  • The LCM can be easily accessed by micro-controller via parallel interface.
  • Control board and touch screen can be matched as per customer requirements.
  • This kind of 7.0 TFT LCD Display Module is easy to assemble and widely used in the application of tablet, automotive, medical.


7 inch TFT LCD Display Module Features





Panel type: IPS TFT LCD, Landscape

Panel size: 7 inch

LCD digital: TFT digital

Resolution: 1024(RGB)x600 Dots

TFT outline dimensions: 164×97×2.6 mm (typical)

Active area (H x V): 154.2144x85.92 mm

Controller: EK79001

Contrast ratio: 800:1 (typical)

Interface: 24 bit RGB interface

Display mode: normally white

Surface treatment: anti-glare

Weight: TBD

Operating temperatures: -10 to 50°C

Storage temperatures: -20 to 60°C

Viewing angle: full viewing (all)

Backlight: 18 chip white LED light

Compliant with RoHS Directive

50-pin interface


Display Size 7.0 Inch Display Resolution 1024( RGB )x600 Dots
Outline Dimension 164×97×2.6 mm  Interface 24 Bit RGB
Operating Temperature -10 To 50 ℃ Viewing Direction All
Storage Temperature -20 To 60 ℃ Touch Panel Without Touch Panel

Active area

154.2144x85.92 mm

Polarizer Mode

Transmissive

Contrast ratio

800 : 1

Driver IC

EK79001

Viewing angle

85/85/85/85

Backlight

18 White LED Lights

Current 120 mA FPC Connector 50 pin





Application



Digital products, POS machine, Cash register, instrument & meter, automobile electronics, communication machine, medical machine, security machine,  household electrical appliances and others .



Our Advantages



Prompt reply within 12 hours.

Products with top quality.

Very competitive prices.

Small MOQ accepted.

More than 10 years’ experience in LCD R&D and manufacturing.

Strong R&D term supports perfect customized projects.

Fabulous after-sale service.



Frequently Asked Questions ( FAQ )



Q: What is your Packing term?



A: Protect product with polyfoam and multi layer paper board .

Special protect carton for exporting product .

Per customer requirement .



Q: How about the Delivery term of TFT LCD Display Module?



A:For samples , we will finish production and ship within 7 working days .

We usually arrange DHL , UPS , FedEx express to ship samples .



For bulk orders , usually 30 working days and depends on your design .

We support shipping by air or by sea as per customers' requirements.



Q: Can you support OEM and ODM?



A:We support both standard and customized products and can put your logo on the products .

Our experienced R&D team will support technical questions . ODM and OEM products are warmly welcome .



Technical Drawing

TFT 7 Inch 1024x600 7 Inch IPS LCD Display Module 50 Pin For Tablet 0
