Product Description

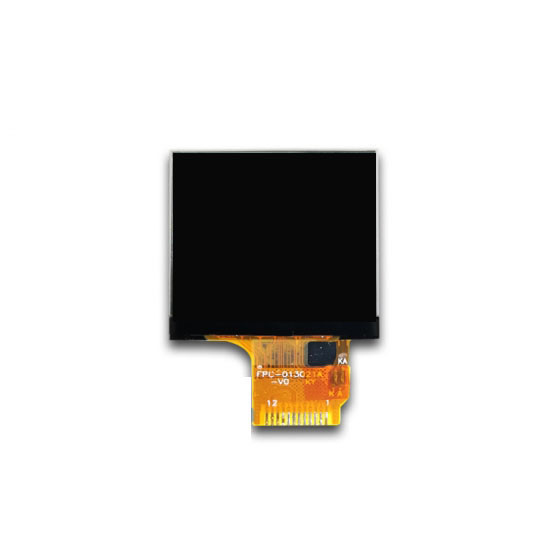

TFT LCD Display Module 1.3 Inch 240 x 240 square SPI Interface IPS LCD Display
ZP013008-C2 is a 1.3 inch color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, FPC and a backlight unit. The module display area contains 240 X 240 pixels and can display up to 262K colors. This product accords with RoHS environmental criterion.
TFT LCD Display Key Specifications / Special Features :
| Display Size |
1.3 Inch |
Resolution |
240 ( RGB ) X 240 |
| Outline Dimension |
26.20 x 29.22 x 1.45 mm |
Interface |
4 SPI Serial Interface |
| Brightness |
300 Nits |
Viewing Direction |
All View |
| Operating Temperature |
-20 To 70 ℃ |
Touch Panel |
Without Touch Panel |
|
Active area
|
23.40 x 23.40 mm
|
Driver IC
|
ST7789V2-G4
|
|
Contrast ratio
|
600 : 1
|
Storage Temperature
|
-30 To 80 ℃ |
|
Viewing angle
|
80/ 80 / 80 / 80
|
Backlight
|
White LED x 2
|
| Current |
50 mA |
FPC Connector |
12 pin |
LCD Display Module Applications
Digital products , POS machine , instrument & meter , automobile electronics , communication machine , medical machine , security machine , household electrical appliances and others .
Packing term
Protect product with polyfoam and multi layer paper board .
Special protect carton for exporting product .
Per customer requirement .
TFT LCD Display Module Delivery term
For samples , we will finish production and ship within 7 working days . We usually arrange DHL , UPS , FedEx express to ship samples .
For bulk orders , usually 30 working days and depends on your design . For bulk orders, we support shipping by air or by sea as per customers' requirements .
Custom design OEM/ODM solutions
We support both standard and customized products and can put your logo on the products . Our experienced R&D team will support technical questions . ODM/OEM products are warmly welcome .
Our Advantages
Prompt reply within 12 hours .
Products with top quality .
Very competitive prices .
Small MOQ accepted .
More than 10 years’ experience in LCD R&D and manufacturing .
Strong R&D term supports perfect customized projects .
Fabulous after-sale service .
TFT LCD Display Module 1.3 Inch Mechanical Drawing
