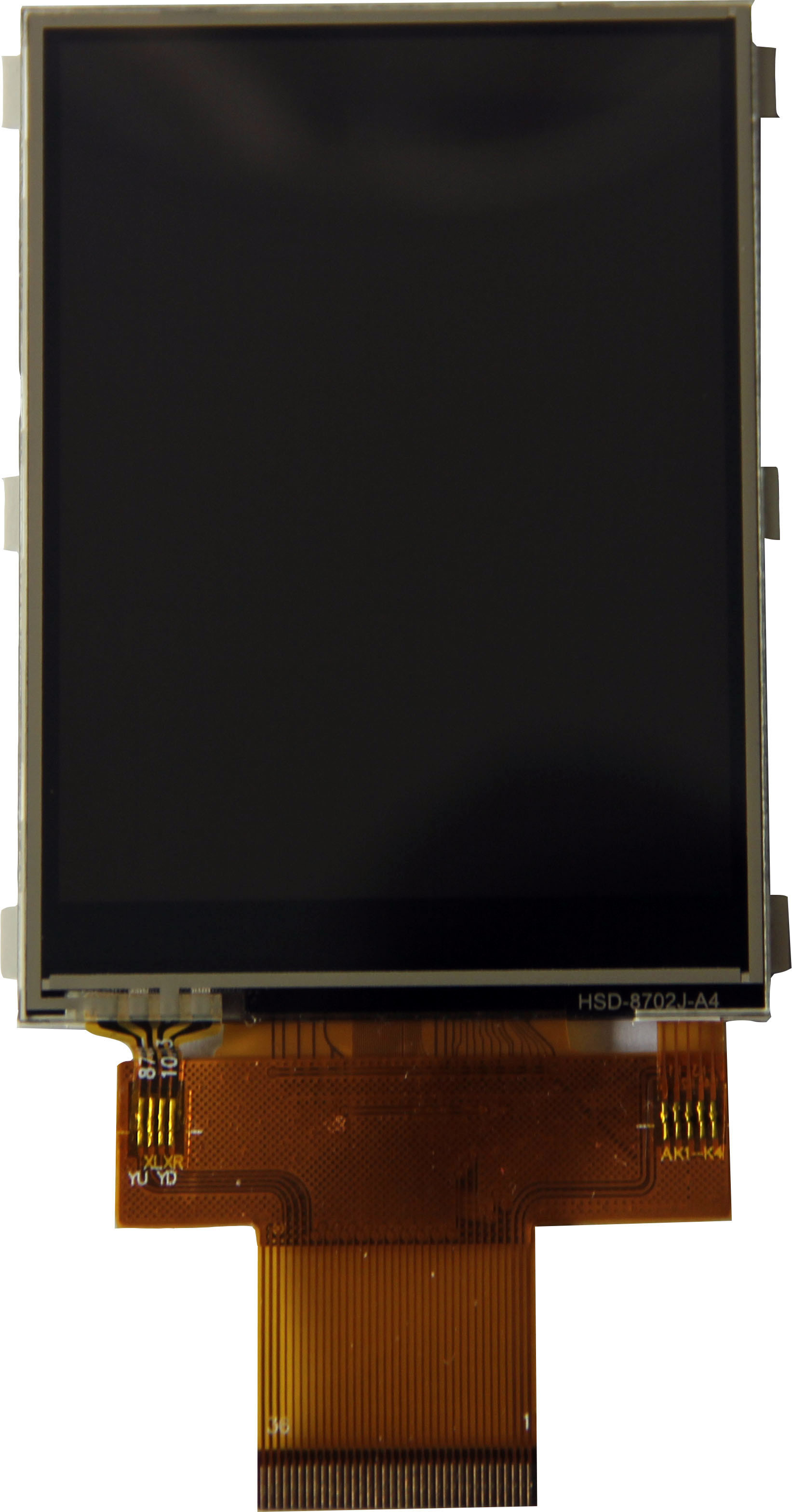

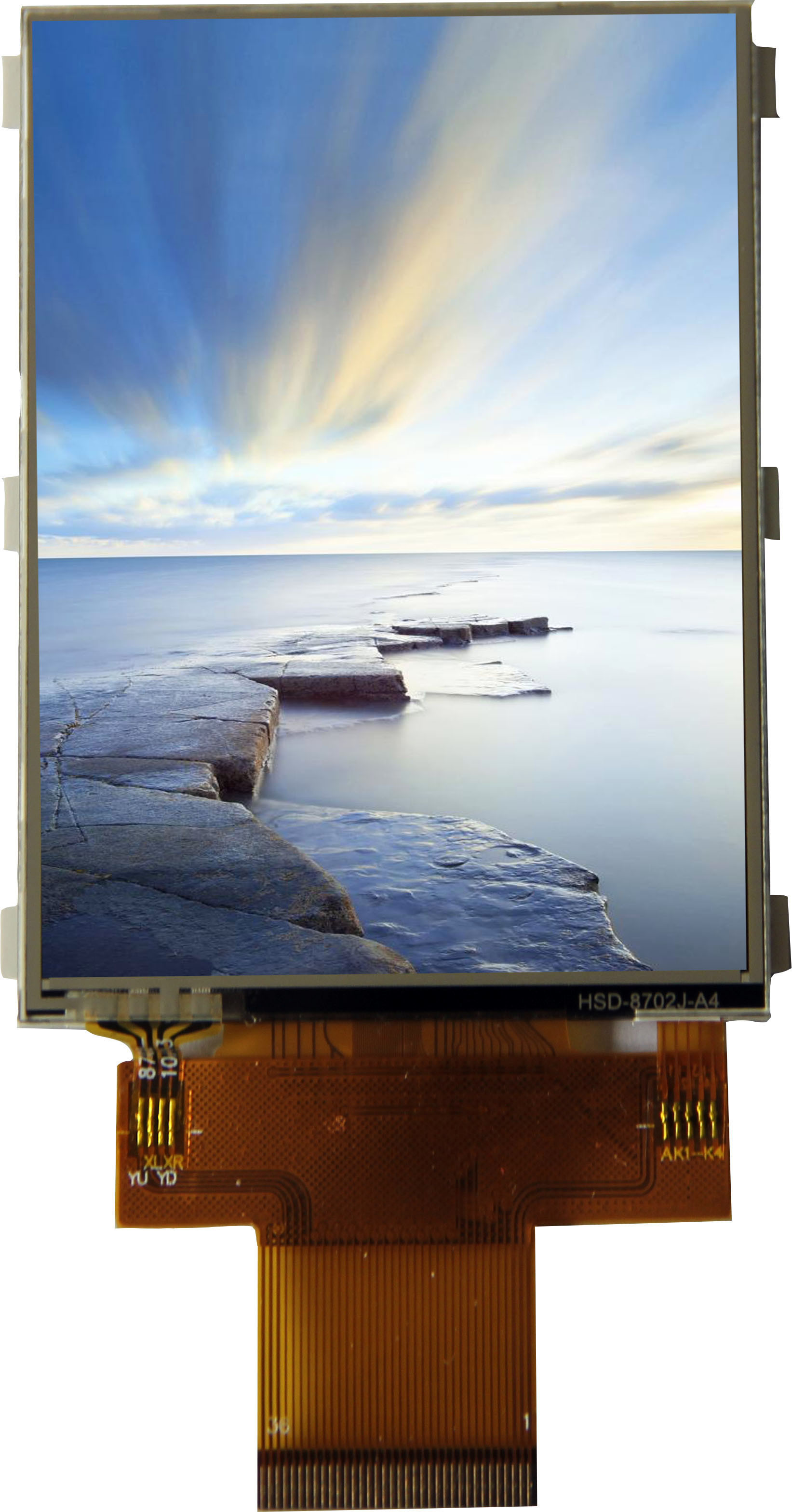

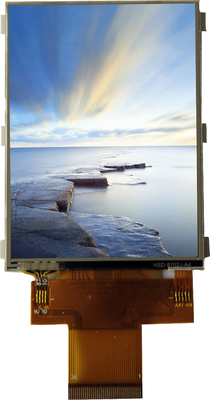

3.5 Inch 320x480 Dots TFT LCD Display Module 44 Pin RGB With Resistive Touch Panel

Minimum Order Quantity : 1 Piece Price : Negotiated
Packaging Details : Foam package/Anti-static bag package/Carton box Delivery Time : Within 7 working days
Payment Terms : T/T, Paypal Supply Ability : More than 100000 pieces per month
Place of Origin: China Brand Name: ZP
Certification: ROHS , REACH , ISO9001 , ISO14001 Model Number: ZP35067

Detail Information

Display Size: 3.5 Inch Resolution: 320 ( RGB ) X 480
Outline Dimension: 54.94 X 85.50 X 3.50 Mm Interface: RGB Interface
Viewing Direction: 12 O'clock Operating Temperature: -20 To 70 ℃
Storage Temperature: -30 To 80 ℃ Touch Panel: With Resitive Touch Panel
High Light:

3.5Inch TFT LCD Display Module

,

TFT LCD Display Module 44Pin

,

320x480 3.5 inch lcd display

Product Description

TFT LCD Display Module 3.5 Inch 320x480 Dots 44 Pin RGB Inerface With Resistive Touch Panel


ZP35067 is a transmissive type a-Si TFT LCD Display module , which is composed of a TFT-LCD panel , a driver circuit and a backlight unit . The panel size is 3.5 inch and the resolution is 320 ( RGB ) x 480 , the panel can display up to 16 M colors . The LCM can be easily accessed by micro-controller via RGB interface .


TFT LCD Display Key Specifications / Special Features :

Display Size 3.5 Inch Resolution 320 ( RGB ) X 480
Outline Dimension 54.94 x 85.50 x 3.50 mm Interface RGB Interface
Operating Temperature -20 To 70 ℃ Viewing Direction 12 O'clock
Storage Temperature -30 To 80 ℃ Touch Panel With Resitive Touch Panel

Active area

48.96 x 73.44 mm

Driver IC

NT35310

Contrast ratio

500 : 1

Storage Temperature

-30 To 80 ℃

Viewing angle

70 / 70 / 70 / 60

Backlight

White LED x 18

Current 90 mA FPC Connector 44 pin





LCD Display Module Applications



Digital products , POS machine , instrument & meter , automobile electronics , communication machine , medical machine , security machine ,  household electrical appliances and others .



Packing term



Protect product with polyfoam and multi layer paper board .

Special protect carton for exporting product .

Per customer requirement .



TFT LCD Display Module Delivery term



For samples , we will finish production and ship within 7 working days . We usually arrange DHL , UPS , FedEx express to ship samples .

For bulk orders , usually 30 working days and depends on your design . For bulk orders, we support shipping by air or by sea as per customers' requirements .



Custom design OEM/ODM solutions



We support both standard and customized products and can put your logo on the products . Our experienced R&D team will support technical questions . ODM/OEM products are warmly welcome .



Our Advantages



Prompt reply within 12 hours .

Products with top quality .

Very competitive prices .

Small MOQ accepted .

More than 10 years’ experience in LCD R&D and manufacturing .

Strong R&D term supports perfect customized projects .

Fabulous after-sale service .



TFT LCD Display Module 3.5 Inch Mechanical Drawing



3.5 Inch 320x480 Dots TFT LCD Display Module 44 Pin RGB With Resistive Touch Panel 0

3.5 Inch 320x480 Dots TFT LCD Display Module 44 Pin RGB With Resistive Touch Panel 1
